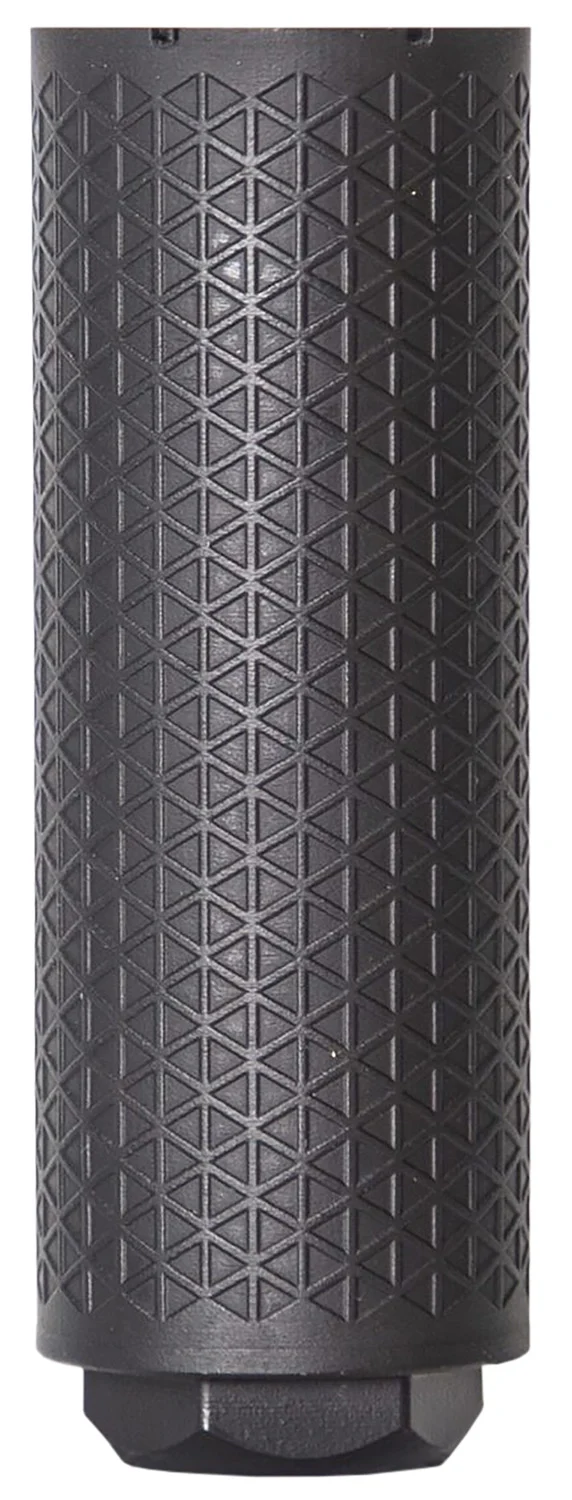

The Radical Defense CS-5 is a compact carbine suppressor built using a 3D-printed monolithic approach with a nickel-based Super Alloy (Haynes 282). The design emphasizes durability and thermal management for extended use; the manufacturer lists a Haynes 282 configuration capable of sustained full-automatic fire and a Ti6Al4V semi-auto rated option. The CS-5 uses a forward-venting monolithic layout with assist ports to help control cyclic rate and reduce back pressure, and it ships with a KFM hub mount and a 1/2×28 flash hider interface.
Key Specifications
- The thread pattern is 1/2×28.
- The length is 5 inches.
- The diameter is 1.78 inches.
- The mount type is a KFM hub mount.
- The construction is a 3D-printed monolithic design using a nickel-based super alloy.
- The listed materials are Haynes 282 / Ti6Al4V.
- The finish is a proprietary I/R non-reflective coating.
Designed for compact carbine applications where durability and thermal management are priorities, the CS-5 provides a rugged, compact option with a hub-mount interface. Its monolithic construction and high-temp coating are intended to offer extended service life and reduced visual signature under operational conditions.
